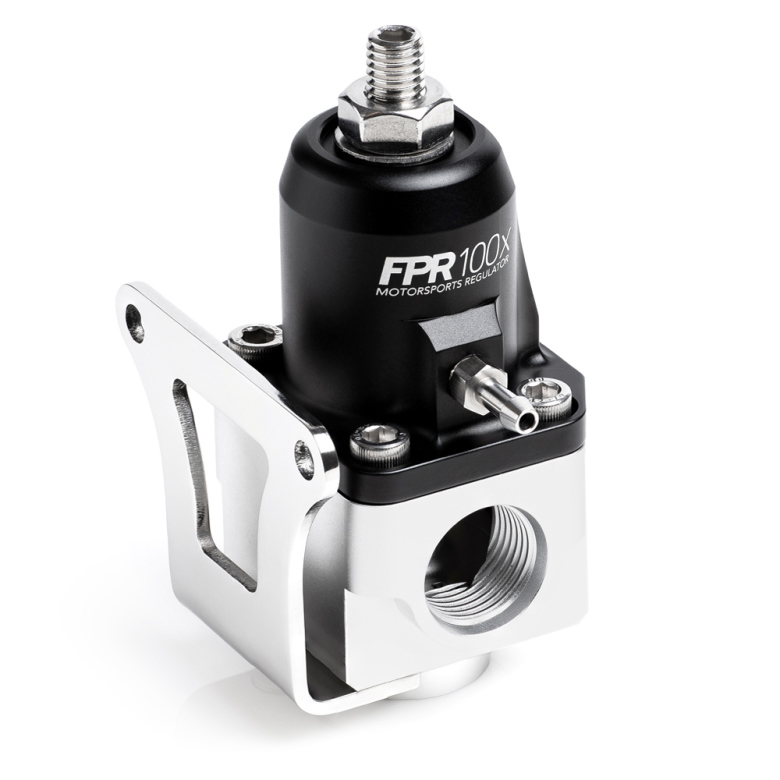

Nuke Performance Fuel Pressure Regulator FPR100X ORB10 (700-2000+ BHP)

Nuke Performance Fuel Pressure Regulator FPR100X ORB10 (700 - 2000+ BHP)

This FRP is the godfather of Nuke Performance's fuel pressure regulators, which still sports a slim and lightweight design. This is an Ethanol-proof ORB10 fuel pressure regulator with a slim design and easy to mount Stainless Steel brackets. Every unit is thoroughly tested before delivery, with unmatched functionality and the same high quality as always.

The most reliable and highest performing 1:1 boost reference solution to bring together simple or complex fuel systems for all types of tuning, engine setup and Motorsport applications. Its lightweight design has the trusted hallmark of the entire Nuke Performance range of Motorsport parts, with an integrated Stainless Steel bracket for safe and easy mounting for all applications and installations.

• Extreme fuel pressure regulator.
• Approved for 2000+ BHP.
• Safe for Petrol, Methanol and Ethanol.
• Every unit thoroughly performance tested.
• Fully adjustable up to 8 Bar / 120 PSI.
• 1:1 boost reference.
• Stainless Steel mounting bracket.
• ORB10 Inlet & Outlet.

*depending on set pressure

Kit Contents

Further Information

The FPR100X is developed from the extreme demands of the highest level of Motorsport.

The FPR100X fuel pressure regulator is co-developed with worldwide teams in Motorsport and fuel pump manufacturers. This fuel pressure regulator is set to perform under extreme conditions and has been designed and tested for usage with well over 2000hp and is fully adjustable between 30 PSI and 120 PSI (2 - 8 bar). This is the optimal ORB10 fuel pressure regulator with the highest flow capacity for setups between 700 - 2000hp+. With its oversized chamber, outlet, and inlet ports, this ORB10 fuel pressure regulator has the highest possible flow capacity for its kind. The FPR100X is a product that evolved out of Nuke Performance's life at the race track and takes its place on top of the smaller FPR100S and FPR100X fuel pressure regulators.

1:1 boost reference and high flow design with minimum flow loss.

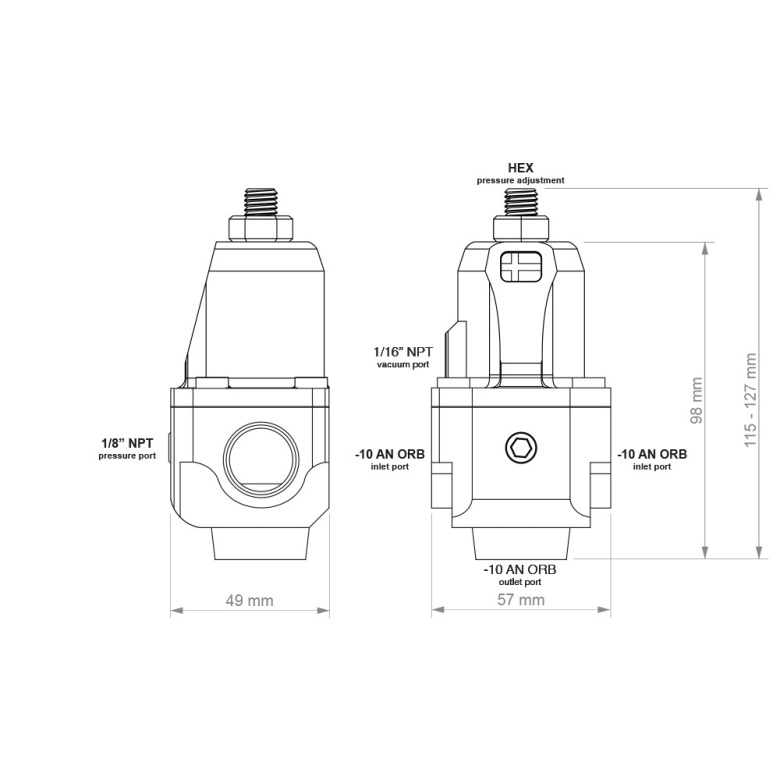

Fuel pressure rises on a 1:1 ratio when referencing boost with the precision pressure adjustment. Fuel pressure is dialed in using the set screw on top with its hardened steel ball that enables an exact and well tuned fuel pressure setup, ≈0.14 BAR (≈2 PSI) / turn. Its dual inlet design allows you to choose between a left or right inlet or a dual inlet for a V-engine setup. The 1/8" NPT thread faces forward for easy to read fuel pressure gauge and fuel pressure sensor installation.

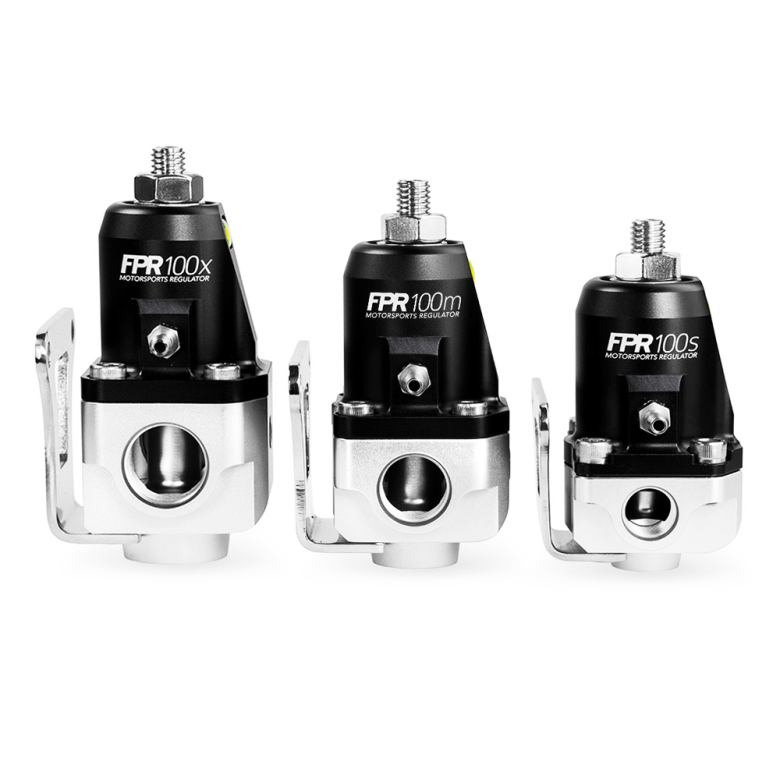

Choose between the ORB06, ORB08, and ORB10 Fuel Pressure Regulator, exceeding your every possible fueling need.

The new FPR100 series fuel pressure regulators are available in ORB06, ORB08, and ORB10. All three have an extremely slim and lightweight design with the latest technology and functionality. The option between three different size versions of the FPR100 series fuel pressure regulators lets you choose the optimal function for your setup. In combination with the different fittings for both inlet and outlet ports between ORB06 and ORB12, these FPR's give you a range from 200 all the way up to 2400 horsepower!

Easy to install with a Stainless Steel bracket and safe for all types of fuel, including alcoholic fuels like Ethanol.

All of Nuke Performance's FPR100 series fuel pressure regulators come with a sturdy Stainless Steel bracket that makes them extremely easy to attach to any engine bay and secures the unit even during extreme conditions to prevent malfunctions. Like all Nuke Performance products, the FPR100 fuel pressure regulator is developed, designed and manufactured with its Stainless Steel hardware and anodized internals to handle all fuels, including petrol, Ethanol, and Methanol. The fibre reinforced 46mm Nitrile membrane of the FPR1002 is of the highest possible quality and is approved for all types of fuel, including petrol and alcoholic fuels such as Ethanol, E85, E100, and Methanol.

Each Fuel Pressure Regulator is rigorously tested before delivery.

To maximize the quality and functionality of the FPR100 series including FPR100S ORB06, FPR100M ORB08 and FPR100X ORB10, each individual fuel pressure regulator is tested before delivery. Nuke Performance's test facility features world leading test equipment that can detect even the smallest possible properties that may negatively affect function. There is no shortcut in the manufacturing that leads to the excellent performance and functionality of the Nuke Performance fuel pressure regulators.

Optional Nuke Performance Fuel Pressure Gauge 7 Bar / 0-100 PSI.

To get the ultimate, full experience of your brand new Nuke Performance fuel pressure regulator, you should supplement it with Nuke Performance's precise and stylish fuel pressure gauge that fits straight into the 1/8" NPT threaded outlet on the front of the regulator. Fuel Pressure Gauge Part #: 310-01-101
