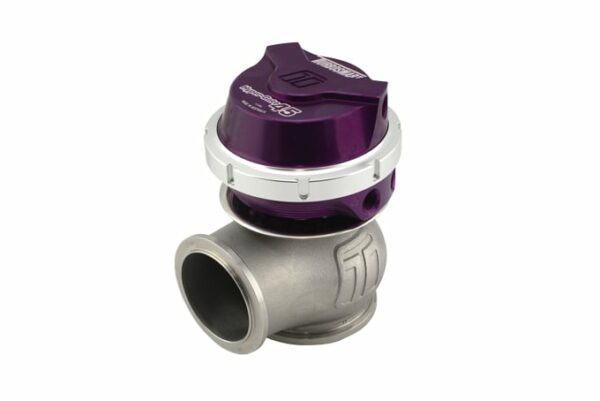

The GenV WG45 HyperGate45 External Wastegate is a Motorsport proven, cost effective external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heatsink design)
eWG (Electronically Actuated) Version
HP (High Pressure Version) Up to 50psi
Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
SUPPLIED WITH
GenV Wastegate unit
All Springs Included
3.5.7.14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal
- Product Type:
- Wastegate
- Model:
- Universal
- Variation:
- Hypergate
- Generation:
- GenV
- Wastegate Size:
- 45mm
- Spring Pressure:
- 14Psi
- Category:
- Engine
- Category:
- Exhaust System
