Honda Civic EP3 Fuel Return System Guide
Building a turbo or supercharged K20? This guide explains why the EP3 returnless fuel system becomes a limitation, which parts you need, how the fuel lines should be routed, and what to check before mapping.
We are often asked to help customers piece together a complete EP3 and DC5 fuel return setup, especially when a boosted K-Series build is heading towards the 350 to 400bhp area and beyond.
Shop Honda Civic EP3 PartsThe standard Honda Civic Type R EP3 fuel system was not designed around big turbo or supercharger power. It works well on a standard or lightly tuned car, but once power and boost increase, fuel flow, fuel pressure control and line routing all become much more important.

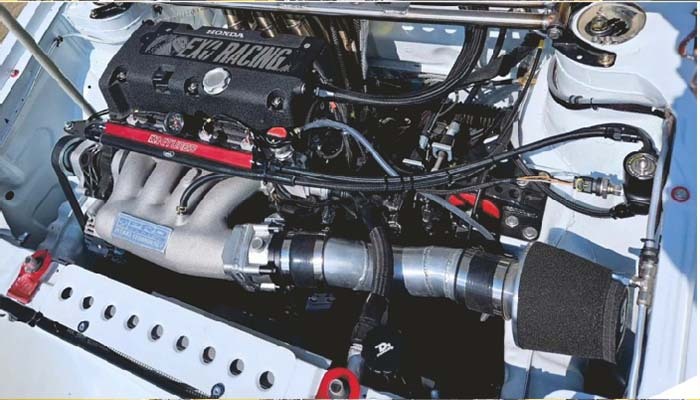

This guide is written around the EP3, but the same return-style fuel system logic also applies to many DC5 and K-swap builds. The fuel pump hanger modification may change, but the basic layout is the same: tank, pump, filter, fuel rail, regulator and return line back to the tank.
The simple answer
An EP3 fuel return system is worth fitting when the standard returnless setup can no longer maintain stable fuel pressure and flow for the target power, most commonly on boosted K20 builds producing around 350 to 400bhp and above.
A proper return setup uses a larger pump, larger fuel lines, an aftermarket fuel rail and a 1:1 adjustable fuel pressure regulator so excess fuel can return to the tank instead of relying on the factory in-tank regulation.
If the car is naturally aspirated or staying near stock power, the factory setup may be enough. If the car is turbocharged, supercharged, running E85 or being mapped for serious power, plan the fuel system before the dyno session.
- The EP3 and DC5 use a returnless fuel system from the factory, which limits fuel pressure control on high-power boosted builds.
- A return system normally includes a fuel pump, fuel rail, fuel pressure regulator, fuel filter, AN06 line, fittings and a return into the tank.
- Pump fuel builds can usually use quality rubber-lined AN hose outside the car; E85, race fuel or cabin-routed lines should use PTFE hose.
- 1000cc injectors and a 340lph pump are common choices for many turbo K20 pump fuel builds, but the final choice should match the target power and fuel type.
- Every fitting, hose end, and bulkhead connection must be leak checked before the car is started or mapped.

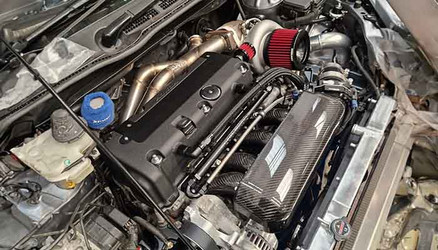

Why the EP3 Needs a Fuel Return System at Higher Power
The standard EP3 and DC5 fuel system is returnless. Fuel is sent from the tank to the factory fuel rail through one feed line, while pressure control happens around the pump assembly rather than through an adjustable regulator in the engine bay.
That layout is simple and tidy for a factory car, but it becomes a restriction when the engine needs significantly more fuel. On a boosted K20, fuel demand rises with boost pressure. The injectors need enough fuel pressure and flow to deliver the required fuel without being pushed beyond a sensible duty cycle.
From our experience helping customers plan EP3 fuel systems, the problem usually appears late in the build. The car has the turbo kit, injectors and ECU sorted, then it arrives near mapping time, and the fuel system is still close to factory. That is when the dyno session becomes expensive very quickly.
What a fuel return system changes
A return fuel system lets you feed the rail with a higher-flow pump and line, then regulate pressure after the rail using an adjustable fuel pressure regulator. Any fuel the engine does not use is returned to the tank.
For boosted cars, the regulator should also have a vacuum and boost reference from the intake manifold. A 1:1 regulator increases fuel pressure as manifold pressure increases, helping the injectors maintain the correct pressure difference across the injector.
EP3 Fuel Return System Parts Checklist
Before buying parts, decide three things: your power goal, your fuel type and how you want to route the lines. Those choices affect the pump, injectors, hose type, fittings and whether you should add a flex fuel sensor.
A 340lph in-tank pump is a common starting point for many 500bhp area K-Series pump fuel builds.
1000cc injectors are common on turbo K20 pump fuel builds, but injector size should be calculated for your fuel and power target.
The OEM rail is not the easiest option because a return system needs suitable ports and AN adapter options.
Use a quality 1:1 adjustable regulator with a vacuum and boost reference for forced induction.
AN06 is common for this type of setup. Use PTFE for E85, aggressive fuels or any line routed inside the car.
You will normally need hose ends, a bulkhead return fitting, an EFI adapter, a fuel filter, P-clips and suitable tools for AN hose assembly.
Example 500bhp pump fuel shopping list
For a typical turbo K20 pump fuel setup, the parts list often looks like this. Treat it as a planning guide rather than a universal kit, because line lengths, fitting angles and sensor choices can change from car to car.
- Hybrid Racing fuel rail for Honda Civic EP3 and Integra DC5
- Hybrid Racing fuel pressure regulator
- Hybrid Racing AN06 inline fuel filter
- AEM 340lph high flow in-tank fuel pump
- Grams fuel injectors for Honda K/F-Series
- Around 10 to 12 metres of AN06 hose, measured properly on the car before ordering
- AN06 straight, 45-degree and 90-degree hose ends to suit your exact route
- AN06 bulkhead fitting and nut for the return into the tank hanger
- AN06 to the EFI hardline adapter if you are adapting from an existing hardline section
Hybrid Racing Unibody Fuel Pressure Regulator Universal
Adjustable fuel pressure control for return-style K-Series fuel systems.
From £232.00

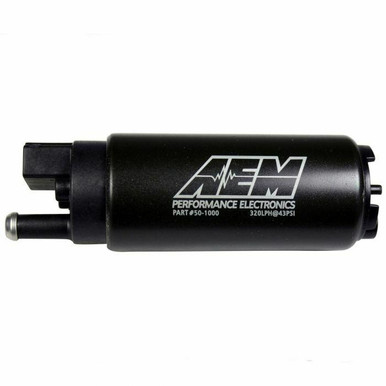

AEM 340Lph High Flow Intank Fuel Pump Offset Inlet Inline 340Lph@43Psi
A common in-tank pump upgrade for high-power K-Series pump fuel builds.
From £114.02
Hybrid Racing Inline Fuel Filter An06 Universal
Inline filtration for AN06 fuel systems before fuel reaches the rail.
From £49.00
Pump Fuel vs E85: Which Hose Should You Use?
Fuel type decides the hose material. For regular pump fuel, a good quality rubber-lined AN hose can work well when routed outside the cabin and away from heat. For E85, race fuel or any fuel line routed inside the car, PTFE is the correct choice.
PTFE is non-porous, so it is much better suited to stopping fuel vapour from entering the cabin. It is also the better option for more aggressive fuels. If you are unsure which fitting type you need, our AN fittings guide, PTFE fitting installation guide and rubber braided AN hose fitting guide explain the differences in more detail.
Use proper AN hose, keep it away from heat and secure it with P-clips.
PTFE is better suited to aggressive fuels and vapour control.
Do not run standard rubber fuel hose through the cabin because fuel vapour is a safety and comfort issue.
How to Route an EP3 Fuel Return System
The basic route is simple, but the details matter. The fuel should leave the pump, pass through a filter, feed the rail, go to the regulator and then return from the regulator back to the tank.
The fuel pressure regulator is normally mounted on the firewall or another solid engine bay location away from excessive heat and vibration. It needs a vacuum and boost reference from the intake manifold so pressure rises correctly under boost.
Fuel line route
- Fuel pump housing to the inline fuel filter.
- Fuel filter to fuel rail feed.
- Fuel rail outlet to fuel pressure regulator.
- Fuel pressure regulator return port back to the tank hanger return fitting.
If your fuel lines pass near hot exhaust parts, plan the route before adding protection. Heat sleeve can protect vulnerable lines, but it should not be used as a shortcut for poor routing, contact with exhaust pipework or a leaking line.
How to Install the Fuel Return System
Fuel system work can be dangerous if it is not done properly. Disconnect the battery, work in a well-ventilated area, keep ignition sources away and do not continue if you are unsure about line assembly, tightening fittings or leak checking.
1. Modify the fuel pump housing
Remove the rear seats, undo the fuel pump access cover and remove the pump sender unit. The feed can be adapted from the pump outlet, while the return normally needs a bulkhead fitting added to the pump housing.
Drill the return fitting hole carefully, clean away swarf and make sure the bulkhead fitting seals correctly. Inside the housing, the return should be directed safely back into the tank area without interfering with the sender or pump assembly.
2. Fit the pump, rail, injectors and regulator
Fit the upgraded fuel pump into the housing, then refit the sender to the tank once the return modification is complete. In the engine bay, fit the injectors to the fuel rail, install the rail and prepare the feed and return ports with the correct adapters.
Mount the regulator away from excessive vibration, where the gauge and fittings are easy to inspect. We prefer mounting a mechanical fuel pressure gauge on the regulator rather than directly on the rail, because engine vibration can shorten gauge life.
3. Make and secure the AN fuel lines
Measure twice before cutting any hose. Allow enough length for engine movement, service access and safe routing, but avoid loose loops that can rub or sit near exhaust heat. Use P-clips or proper mounts so the hose cannot vibrate against sharp edges.
AN vice jaws and AN spanners help you assemble fittings without marking them. More importantly, they help you hold the parts squarely so the fitting is properly seated.
Watch: In our AN fitting install video, we show how to assemble rubber braided hose ends cleanly before you build the feed and return lines.
4. Prime and leak check the system
Once everything is fitted, reconnect the battery and prime the pump without starting the engine. Check every connection: pump hanger, bulkhead fitting, filter, fuel rail, regulator, gauge port and every hose end.
If you smell fuel, see dampness or notice pressure dropping unexpectedly, stop and fix the issue before starting the car. Do not map or drive the car until the system holds pressure and remains completely dry after multiple prime cycles.
Common EP3 Fuel Return System Mistakes
Buying parts before planning the route
The wrong fitting angle can make a neat install awkward. Plan the pump, filter, rail and regulator positions before ordering every hose end.
Running the wrong hose for the fuel
Rubber-lined AN hose can be fine for many pump fuel installs outside the car, but PTFE should be used for E85, race fuel and cabin-routed lines.
Forgetting the regulator vacuum line
A boost-referenced regulator needs a proper vacuum and boost source. Without it, the fuel pressure will not respond correctly to manifold pressure.
Using heat protection to hide bad routing
Fuel lines should not touch exhaust parts or sharp edges. If a line is too close to a manifold, downpipe or screamer pipe, fix the route first. A heat sleeve is protection, not permission to run a fuel line in a poor position.
What Happens If You Ignore the Fuel System?
If the fuel system cannot keep up, the car may run out of injector duty cycle, fuel pressure may become unstable, and the mapper may have to stop before reaching the target power. That is the best-case outcome.
The worst outcome is trying to push a setup with insufficient fuel delivery. A lean boosted K20 is not something to gamble with. Fuel pressure, injector size, pump flow and line routing should be sorted before the car reaches the dyno.
We also see people underestimate heat and routing. A fuel hose routed too close to exhaust heat can become a reliability and safety issue, especially on turbo conversions where the engine bay is much hotter than the factory.
Common Concerns Before Fitting a Fuel Return System
Is an EP3 fuel return system overkill for a naturally aspirated car?
For many naturally aspirated builds, yes. Unless the setup has a specific fuel delivery problem or a very high power target, the factory system may be enough. The return conversion makes most sense on boosted or high fuel-demand setups.
Can I keep part of the factory hardline?
Some installs adapt from the hardline in the engine bay, but the return still needs to go back to the tank because the EP3 does not have an OEM return line. Make sure any adapter, line and route suit the final power target.
Should I fit the gauge on the rail or the regulator?
We prefer mounting the gauge on the regulator where possible. A fuel rail gauge can suffer from engine vibration, and some gauge manufacturers may not warranty vibration-related failures.
FAQ
What is a fuel return system?
A fuel return system feeds fuel to the rail, regulates pressure after the rail and sends unused fuel back to the tank. On a boosted setup, a 1:1 regulator uses manifold pressure to help maintain the correct fuel pressure under boost.
Do I need an EP3 fuel return system over 400bhp?
If your EP3 is going over roughly 350 to 400bhp, especially with a turbo or supercharger, a return system is normally a sensible upgrade. The exact requirement depends on fuel type, injector size, pump flow and mapping target.
Can I increase fuel pressure on the stock EP3 regulator?
No. The factory regulator is not designed as an adjustable tuning part. If you need adjustable fuel pressure, use a proper aftermarket fuel pressure regulator as part of a return-style system.
How much hose is needed for an EP3 fuel return system?
Many EP3 installs use around 10 to 12 metres of hose for a full feed and return system, but you should always measure your own route before ordering. Regulator position, filter location and line routing can change the final length.
Should I use AN06 or AN08 fuel line?
AN06 is common for many EP3 and DC5 fuel return systems. AN08 may be used on more serious setups, but bigger is not automatically better if the rest of the system, fittings and regulator are not planned around it.
Can I run E85 on the same fuel return setup?
Only if the pump, injectors, hose, fittings, seals and any sensors are compatible with E85. For E85, use PTFE hose and choose an E85-compatible fuel pump and suitable injector size.
Can I install an EP3 fuel return system myself?
Only if you are confident working with fuel systems, AN hose assembly, bulkhead fittings and leak checking. If you are not fully confident, get a professional to install it. Fuel leaks are not worth the risk.
Conclusion: Build the Fuel System Before the Dyno
If your Honda Civic EP3 or Integra DC5 is heading into serious boosted K-Series power, the fuel return system should be planned as part of the build, not treated as a last-minute fix. A good setup gives you the pump flow, line capacity, adjustable pressure control and return path needed for safer mapping.
Start with the power goal and fuel type, then choose the injectors, pump, regulator, rail, hose and fittings around that target. Measure the car before ordering the hose, keep lines away from heat, use PTFE where the fuel or route requires it, and leak check everything before starting the engine.
For the next stage of the build, you may also find our EP3 engine tuning guide, Honda K-Series turbo conversion guide and EP3 braking upgrades guide useful.
Ask Us About Your EP3 Fuel SystemAbout the Author
Exoracing is a UK-based automotive performance and heat management specialist helping enthusiasts and workshops since 2018.
We use product knowledge, customer build experience and practical installation feedback to help customers choose the right parts before they spend money twice.
