5 Reasons You Need A Magnetic Sump Plug
Posted by Matthew Marks on 7th May 2025
5 Reasons You Need A Magnetic Sump Plug
A magnetic sump plug is a small service upgrade that can catch metal particles in your engine oil, give you early warning signs during oil changes, and add another layer of protection for tuned, track and daily driven cars.
From our own builds and customer support experience, this is one of the simplest checks we like to add to an oil service.
Shop Exoracing Magnetic Sump PlugYour engine relies on oil to protect bearings, cams, crank journals, cylinder walls and other moving parts. Even with regular servicing, small metal particles can appear in the oil as components wear, especially on high-mileage, tuned, hard-driven or freshly built engines.
A magnetic sump plug, also called a magnetic drain plug, replaces the standard sump plug and uses a magnet to collect ferrous metal debris from the oil. It does not replace proper servicing, a good oil filter or mechanical diagnosis, but it gives you a useful extra inspection point every time you drain the oil.
I'm Matt from Exoracing, and we use magnetic sump plugs in our own cars because they are simple, affordable and genuinely useful during servicing. In this guide, we will explain what they do, what is normal to see on one, when debris becomes a warning sign, and how to choose the correct thread size.
The simple answer
A magnetic sump plug is worth fitting if you want an easy way to catch small ferrous metal particles and inspect engine wear during oil changes.
It is especially useful on performance cars, track cars, turbo builds, older engines, fresh engine builds and cars that are serviced at home.
It will not fix an engine problem, stop non-magnetic debris or replace an oil filter, but it can give you useful early warning signs before a small issue becomes expensive.
- A magnetic sump plug collects ferrous metal particles in the oil pan so they can be inspected at oil change time.
- Fine metallic paste can be normal, especially after fresh builds or hard use, but chunks, flakes or sudden heavy debris need investigation.
- It is a service aid, not a replacement for oil changes, oil filters, correct oil grade or mechanical checks.
- Thread size matters. Check your original sump plug before ordering M12x1.25, M12x1.5 or M14x1.5.
- Use a fresh crush washer and do not overtighten the plug when refitting.
What Does A Magnetic Sump Plug Do?
A magnetic sump plug sits at the lowest point of the engine oil pan, just like a normal drain plug. The difference is that it has a magnet on the end inside the sump. As oil moves around the engine and drains back into the sump, ferrous metal particles can be attracted to the magnet and held there until the next oil change.
The keyword here is ferrous. A magnet can collect iron and steel particles, but it will not collect every possible contaminant. Aluminium, copper, bearing material, dirt, gasket sealant and other non-magnetic debris still need to be controlled by proper servicing, filtration and diagnosis.
5 Reasons To Fit A Magnetic Sump Plug
1. It catches small metal particles in the oil
Every engine creates some wear over time. Pistons, rings, cams, crank components, chains, gears and oil pump parts all operate in a harsh environment. A good oil filter is still the main line of defence, but a magnetic sump plug can catch small ferrous particles before they continue moving around the sump.
That makes it a simple extra layer of protection. It is not there to make a tired engine healthy again, but it can help reduce the amount of magnetic debris left loose in the oil pan.
2. It gives you an early warning during oil changes
The biggest benefit is inspection. When you remove the plug, you can immediately see what the magnet has collected. A light grey paste can be normal, especially on a freshly built engine, gearbox-style applications, or after hard use. Sharp flakes, chunks, needles, heavy glitter or a sudden increase in debris are more serious.
Small wear particles can collect over a service interval. Clean the plug and compare it at the next oil change.
Do not ignore it. Check the oil filter, oil pressure, noises and recent engine behaviour.
Large debris can point to a mechanical fault. Running the engine again without checking it can make the damage worse.
3. It adds useful protection for tuned and hard-driven cars
Tuned engines, turbo builds, track cars and high rpm engines often have more heat, more load and shorter service intervals than a standard road car. That does not mean a magnetic sump plug is only for race cars. It means the inspection value becomes more useful when the engine is being worked harder.
We use them on our own builds because every oil change becomes a quick health check. If something abnormal appears on the magnet, you know to look deeper rather than blindly refilling the engine and hoping for the best.
4. It is quick to fit during a normal oil change
The best time to fit one is during an oil and filter service. Drain the oil, remove the old sump plug, check the thread size, fit the magnetic plug with a fresh crush washer, torque it correctly, refill the engine and check for leaks.
The plug itself is simple, but the fitting process still matters. Cross-threading, overtightening or reusing a tired washer can cause leaks or sump thread damage.
5. It gives peace of mind for very little money
A magnetic sump plug is not a glamorous part, but it is one of those small service upgrades that makes sense. Once fitted, it works in the background and gives you something useful to inspect every time you change the oil.
For anyone who services their own car, runs a performance engine or wants a simple extra check during oil changes, it is a low effort upgrade with a clear purpose.
Recommended Service Parts
If you are fitting a magnetic sump plug, do it as part of a proper service. Fresh oil, a new washer and a careful leak check matter just as much as the plug itself.

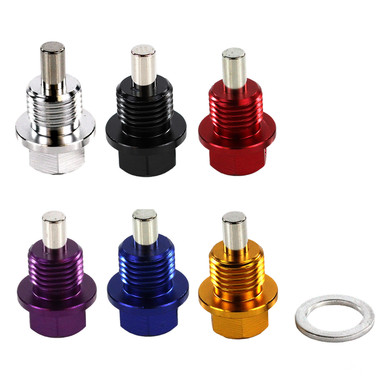

Exoracing Billet Aluminium Magnetic Sump Plug
Catches ferrous metal debris and gives you a useful inspection point at every oil change.
From £19.99

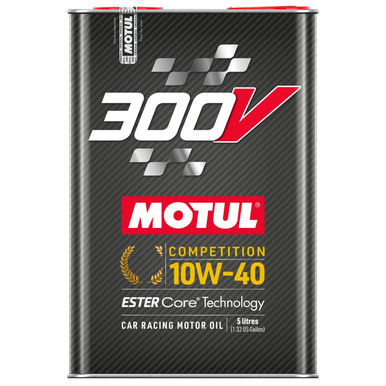

Motul 300V Competition 10W40 Racing Car Motor Oil 5L Can
Fresh oil and a clean inspection point make each service more useful.
From £119.99
Real World Proof: What A Magnetic Plug Can Catch
One customer story has always stuck with us. A customer and friend had an oil pump bolt come loose inside the engine. During the oil change, the bolt was found stuck to the end of one of our magnetic sump plugs.
That is not the normal job of a sump plug, and we would never suggest relying on it as a substitute for a healthy engine. But it is a strong example of why we like having a magnet at the bottom of the sump. If something ferrous ends up there, we would rather it be caught and found than left moving around unseen.
How To Choose The Correct Magnetic Sump Plug
The most important thing is thread size. A magnetic sump plug must match the thread in your sump. Do not guess based only on the car model if the engine or sump may have been changed. Check the original plug size, thread pitch and sealing style before ordering.
The Exoracing plug is available in M12x1.25, M12x1.5 and M14x1.5 options.
A used washer may not reseal correctly and can cause oil leaks.
If the sump threads are damaged or the plug does not start by hand, stop and inspect before forcing it.
How To Fit A Magnetic Sump Plug Safely
Fit the plug during an oil service when the car is safely raised or on a ramp. Warm oil drains better than cold oil, but do not burn yourself on hot oil, the sump or exhaust components.
- Warm the engine, then switch it off and allow it to cool to a safe working temperature.
- Raise the car safely and support it correctly. Never rely on a jack alone.
- Remove the old sump plug and drain the oil into a suitable container.
- Check the old plug thread and compare it with the magnetic sump plug.
- Fit the magnetic plug with a fresh crush washer and start the thread by hand.
- Tighten to the correct torque for your application. Do not overtighten.
- Refill with the correct oil, start the engine, switch off, recheck the oil level and inspect for leaks.
When A Magnetic Sump Plug Is Not Enough
A magnetic sump plug is not a repair. If you find large pieces of metal, if the engine has low oil pressure, if it knocks, rattles, smokes heavily or suddenly uses oil, stop and investigate properly. Do not keep driving just because the plug has caught some material.
It also will not catch non-magnetic debris. If you are worried about bearing material or other contaminants, cut open the oil filter if suitable, inspect the drained oil, and speak to a professional engine builder or mechanic before running the engine again.
Common Mistakes To Avoid
Ordering the wrong thread size
A sump plug must match the sump thread. If you are unsure, remove and measure the original plug or check reliable vehicle data before ordering.
Reusing an old crush washer
A crush washer is designed to seal by deforming. Reusing it can cause leaks, especially if it is marked, flattened or damaged.
Overtightening the plug
More force does not mean a better seal. Overtightening can damage the plug, washer or sump threads.
Ignoring what the magnet shows you
The magnet is useful because it gives you information. If the plug suddenly shows heavy debris, treat that as a reason to inspect the engine, not as proof that everything is fine.
Related Exoracing Reading
If you are servicing or monitoring a performance build, you may also find our AWD Civic EK build plans useful for seeing the sort of parts we choose on our own cars. For fuel system servicing and AN line work, our Honda Civic EP3 fuel return system guide shows how small hardware choices matter in a full system.
For line assembly and workshop checks, our AN fittings to rubber braided hose guide is another useful maintenance and build resource.
Magnetic Sump Plug FAQs
Is a magnetic sump plug worth it?
Yes, if you want a simple extra inspection point during oil changes. It is low-cost, easy to fit and can collect ferrous metal debris, but it should be used alongside proper servicing.
Will a magnetic sump plug stop engine wear?
No sump plug can stop normal engine wear. It can collect some ferrous debris and help you monitor what is happening inside the engine, but oil quality, oil pressure, filtration and mechanical condition still matter.
What metal on a magnetic sump plug is normal?
A small amount of fine grey paste can be normal over a service interval. Sharp flakes, chunks, heavy glitter or a sudden increase in debris should be investigated.
Do magnetic sump plugs work with aluminium debris?
No, aluminium is not magnetic. A magnetic sump plug mainly collects ferrous metal particles such as iron or steel. It will not catch every type of engine debris.
Do I need a new washer with a magnetic sump plug?
Yes, use a fresh crush washer when fitting or refitting the plug. A reused washer can fail to seal properly and may cause an oil leak.
Can I fit a magnetic sump plug myself?
Yes, if you are comfortable doing an oil change safely. If you are unsure about lifting the car, thread size, torque or oil leaks, ask a mechanic to fit it.
Can I use the BLOG5 discount code?
If the code is active at checkout, BLOG5 can be used for money off your order. Discount codes can change, so always check the checkout total before placing the order.
Conclusion: A Small Service Upgrade That Makes Sense
A magnetic sump plug is simple, but that is exactly why we like it. It does not claim to rebuild your engine, fix poor servicing or replace a proper diagnosis. It gives you a magnet in the sump, a useful inspection point during oil changes and a little more confidence that ferrous debris is being collected where you can see it.
For daily drivers, tuned cars, track cars and fresh builds, it is a sensible part to fit during your next oil service. Choose the correct thread size, use the supplied washer, check for leaks, and inspect the magnet every time you drain the oil.
You can use code BLOG5 at checkout if the code is currently active.
