Exoracing Titanium Sump Bolt Kit For Honda Civic B/D-Series

Will This Fit My Honda?

This kit is made for Honda B-Series and D-Series engine sumps using the 10 bolt and 9 nut oil pan hardware layout. It is commonly suited to B-series and D-series Civic/CRX/Integra engine setups where the sump hardware matches this count.

If your engine has been swapped, the sump has been changed, or you are unsure which oil pan is fitted, count the original sump nuts and bolts before ordering. For oil-service protection at the same time, pair this kit with an Exoracing billet aluminium magnetic sump plug. You can also read our magnetic sump plug guide if you are refreshing the oil system.

Why Should You Use The Exoracing Titanium B/D-Series Sump Bolt Kit?

Original Honda sump hardware can corrode, round off, or go missing after years of oil services, engine work, and exposure under the car. Damaged sump hardware makes future servicing harder and can leave the oil pan looking tired even after the rest of the engine bay has been refreshed.

This Exoracing kit replaces the OEM steel sump hardware with Grade 5 Ti-6AL-4V titanium fasteners. Titanium gives excellent corrosion resistance, a clean dress-up finish, and a useful weight saving compared with equivalent steel hardware.

The full kit weighs only 51g and is designed as a direct hardware refresh for compatible Honda B-Series and D-Series sumps. It is a practical upgrade for road cars, track cars, engine builds, oil pan gasket jobs, and tidy Honda engine bays where small details matter.

For more Honda engine service and dress-up parts, see the Exoracing engine parts collection.

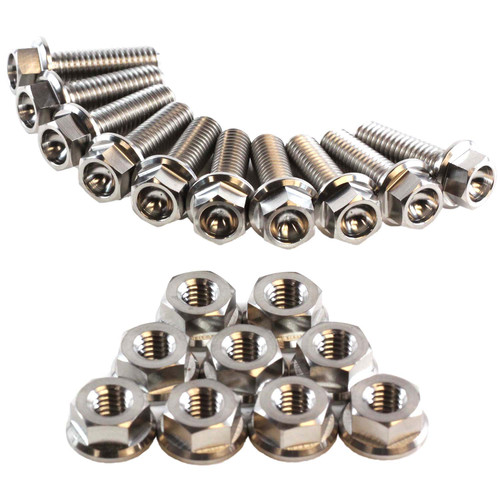

Purchase Includes:

• 10 x Exoracing Grade 5 titanium sump bolts
• 9 x Exoracing Grade 5 titanium sump nuts
• 1 x Exoracing Lifetime Warranty

Features:

• Replaces rusty, corroded or rounded Honda B/D-series sump hardware
• Fits compatible B-Series and D-Series sumps using 10 bolts and 9 nuts
• Manufactured from Grade 5 Ti-6AL-4V titanium
• Forged fasteners with rolled threads for improved fatigue resistance
• Excellent corrosion resistance compared with standard steel hardware
• Full kit weighs only 51g
• Up to 45% weight saving compared with equivalent OEM steel hardware
• Includes Exoracing lifetime warranty

Exoracing B/D-Series Titanium Sump Bolt Kit Installation Guide:

This is a simple service hardware replacement when the car is safely raised, and the sump area is accessible.

1. Safely raise the car and support it on axle stands or use a ramp.
2. Drain the engine oil if there is any risk of oil escaping while the sump hardware is removed.
3. Remove the original sump nuts and bolts one at a time, checking the mating area and thread condition as you work.
4. Install the Exoracing titanium hardware in the same positions as the original Honda hardware.
5. Torque the hardware to the factory Honda sump setting of 9 ft/lb, working from the rear centre to the front centre in a crisscross pattern around the sump.
6. Refit the sump plug with a fresh crush washer, refill the engine oil to the correct level, start the engine, and check carefully for leaks.

Installation difficulty: simple service item when the sump area is accessible. Professional installation is recommended if you are not confident working under the car.

Technical Specifications:

Frequently Asked Questions

Does this fit all Honda B-Series and D-Series engines?

It is designed for Honda B-Series and D-Series sumps that use 10 bolts and 9 nuts. Please count your existing sump hardware before ordering, especially if the car has an engine swap or a non-standard sump.

What is included in the kit?

The kit includes 10 Grade 5 titanium bolts, 9 Grade 5 titanium nuts, and an Exoracing lifetime warranty. It does not include the sump, gasket, sump plug, oil, or sealant.

When should I fit this kit?

The best time to fit it is during an oil service, sump gasket replacement, sump refresh, or engine bay dress-up job while the sump hardware is already accessible.

What torque setting should I use?

Torque the sump nuts and bolts to the factory Honda setting of 9 ft/lb. Do not over-tighten the hardware.

Is this a performance upgrade or a dress-up upgrade?

It is both a service and a dress-up upgrade. The titanium hardware resists corrosion better than standard steel hardware, saves weight, and gives the sump area a cleaner finish.

Notes:

• The sump, sump gasket, sump plug, oil, crush washer and sealant are not included.
• Check your sump uses 10 bolts and 9 nuts before ordering.
• Torque all nuts and bolts to the factory setting of 9 ft/lb.
• Do not over-tighten titanium sump hardware.
• Professional installation is always recommended.
